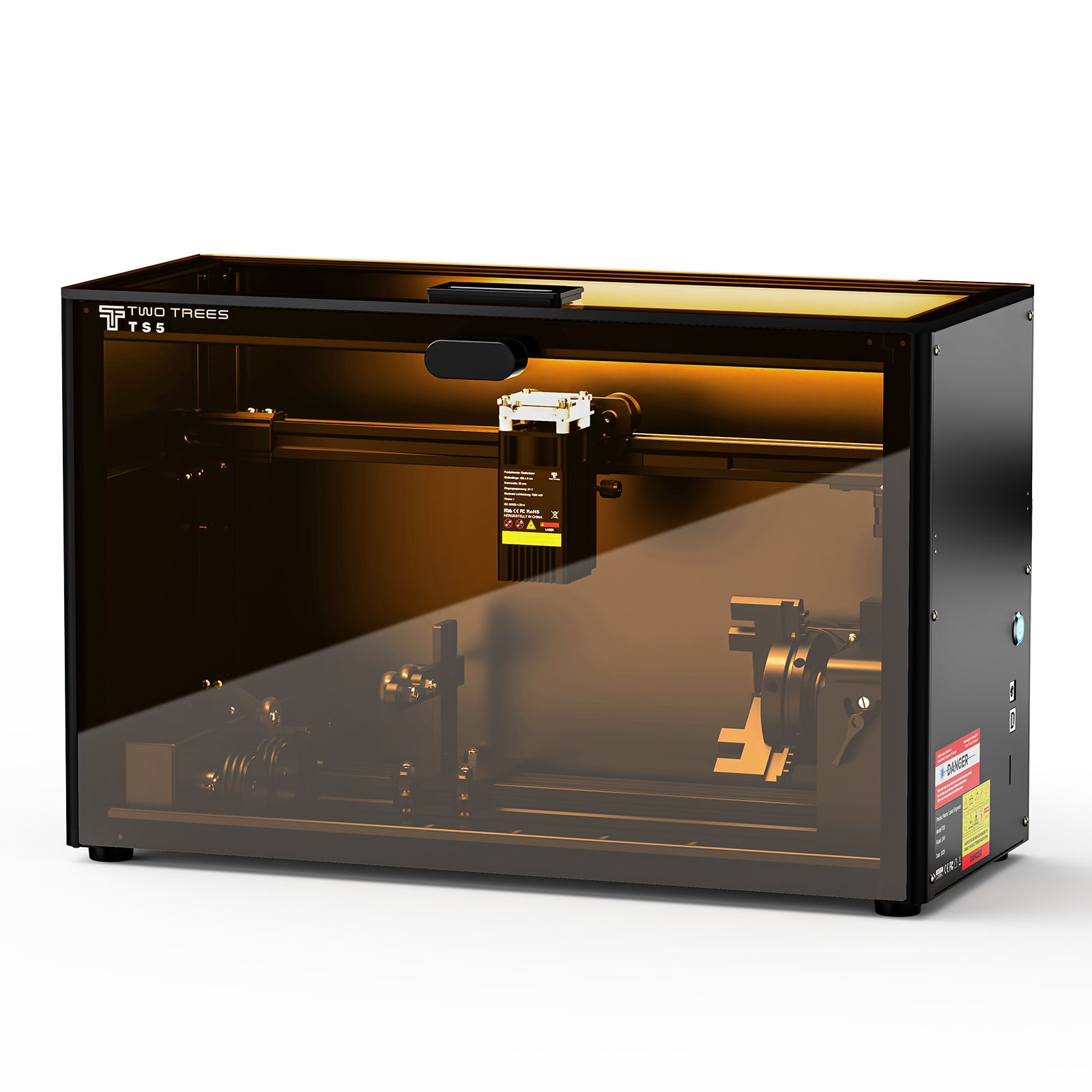

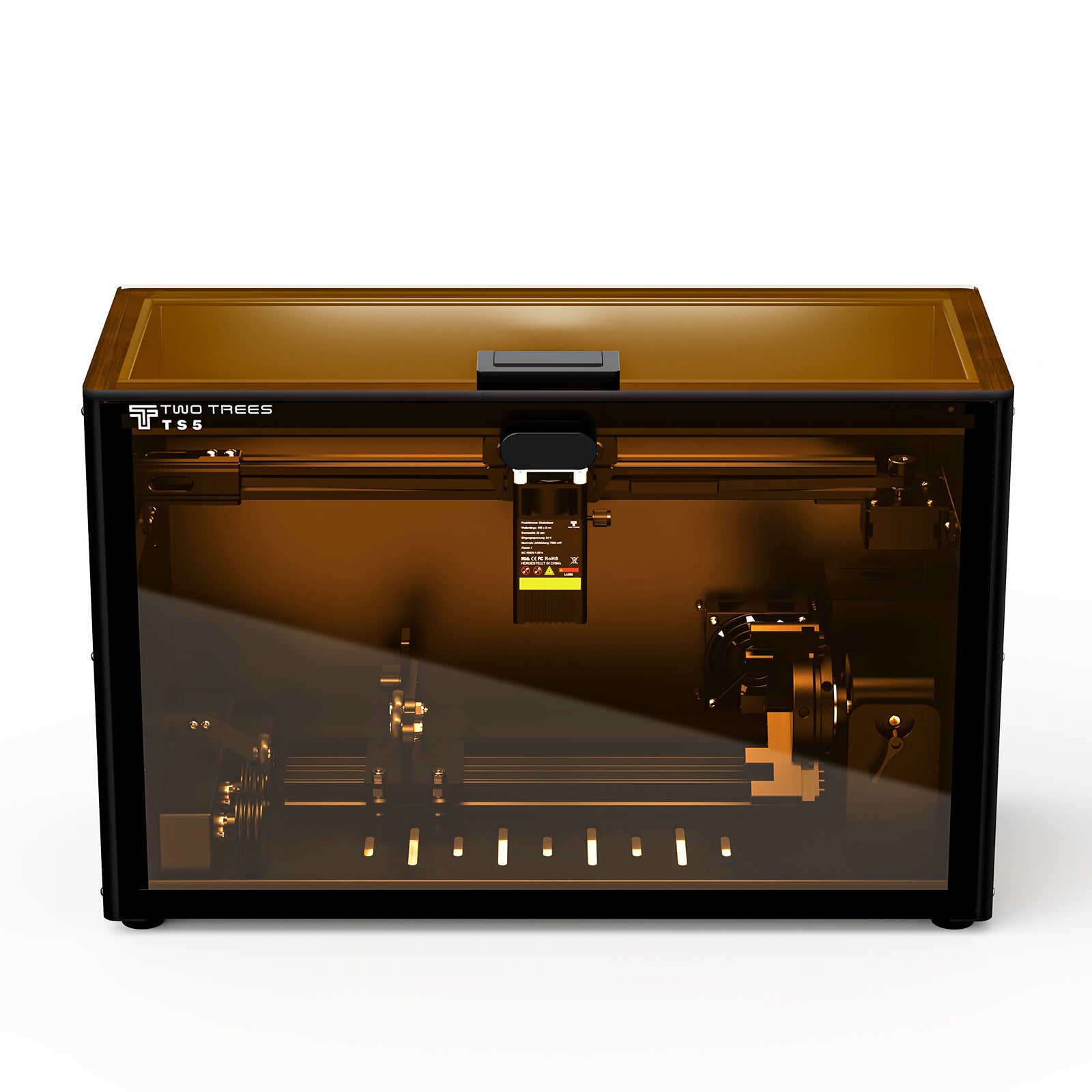

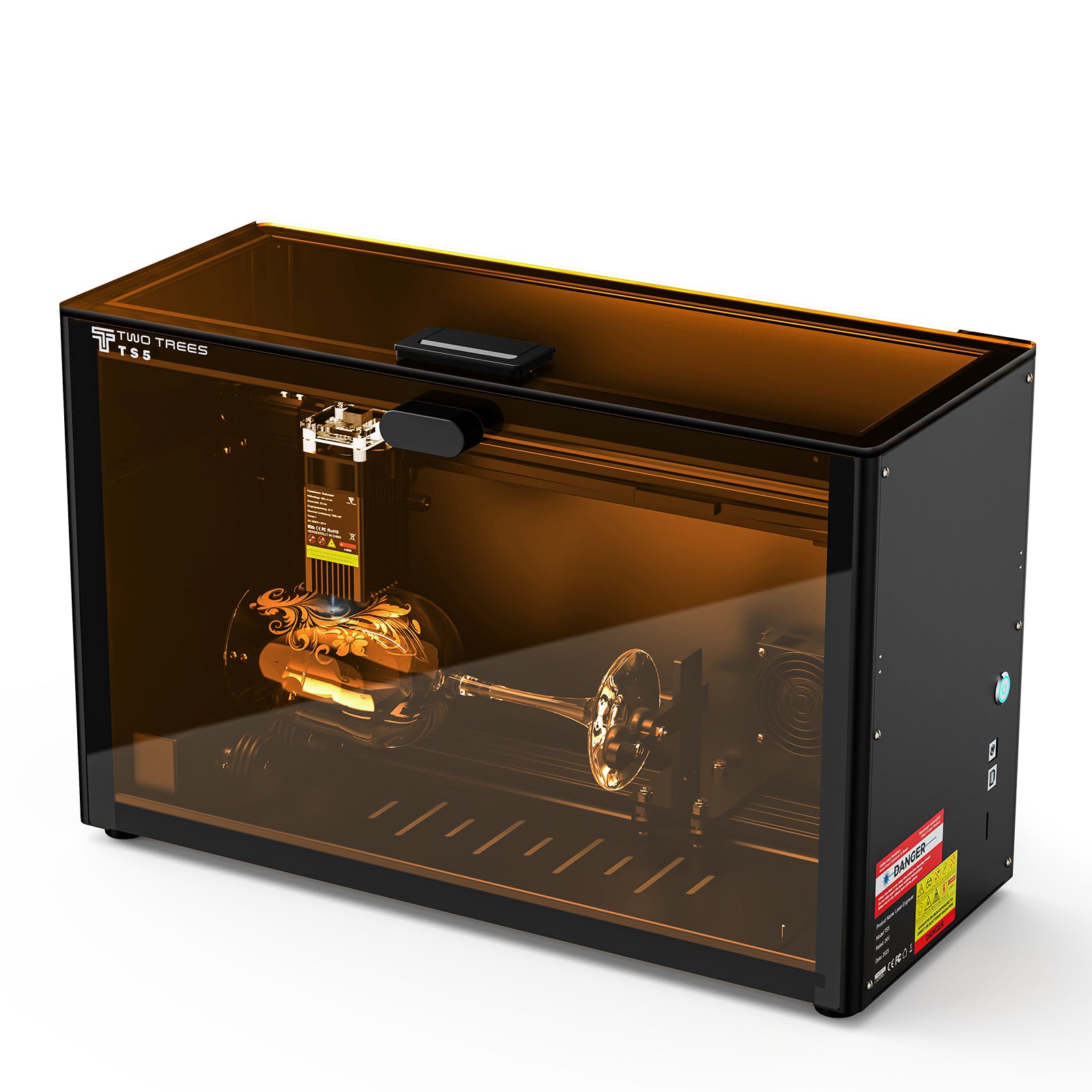

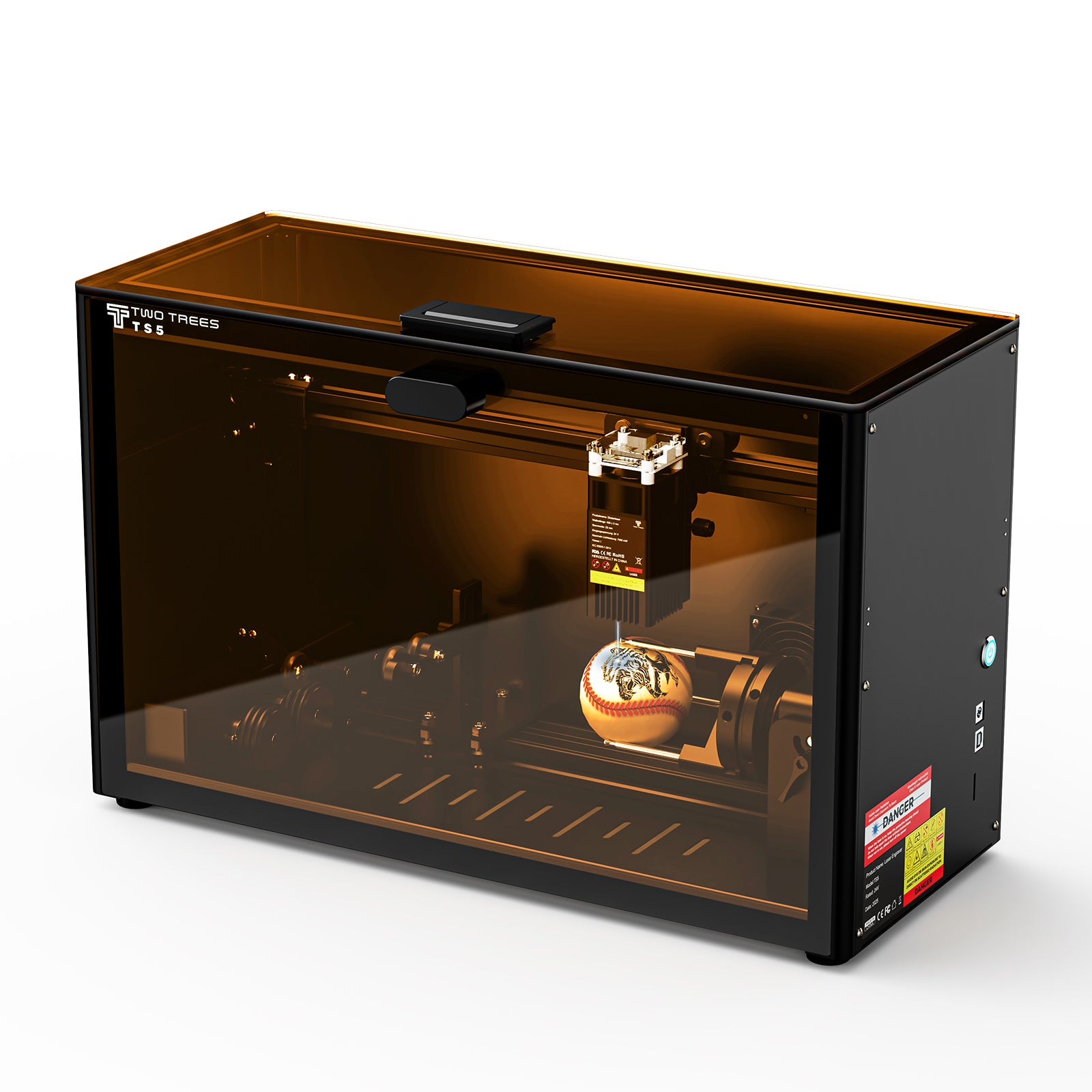

Twotrees TS5-7W Laser Engraver

£322.00
£899.00 £322.00
SAVE £577.00
Shipping calculated at checkout.
Payment and Discount Info

Hurry Up! Don’t Miss Out!

Savings with Up to 72% OFF - Buy Early, Ship Early.

limited time offer
×

Alert me if this item is restocked.

We often restock popular items or they may be returned by the other customers.

Twotrees TS5-7W Laser Engraver

Please enter name
Please enter email Invalid email address
Required mobile number Invalid country code Too short Too long Invalid mobile number Valid

Your notification has been registered.

Looks like you already have notifications active for this size!

We respect your privacy and don't share your email with anybody.

Alert me if this item is restocked.

We often restock popular items or they may be returned by the other customers.

We have cancelled your request.

Plug Type: EU
  • American Express
  • Apple Pay
  • Bancontact
  • Google Pay
  • iDEAL
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Free Shipping
One Year Warranty
14 Days Free Return
Lifetime Support

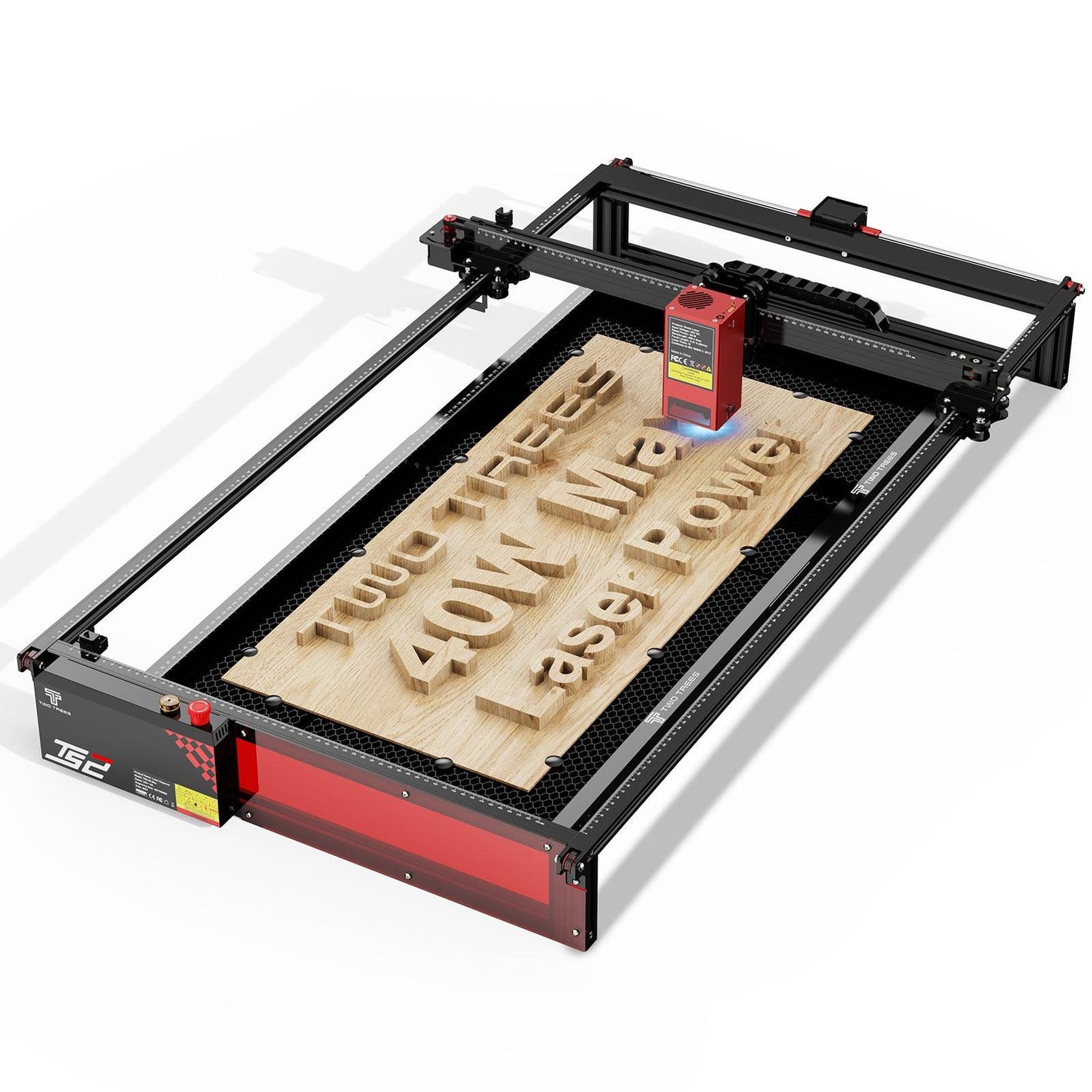

Twotrees StoreTwotrees TS2-40W Max Laser Engraver
Twotrees TS2-40W Max Laser Engraver - TwoTrees Official Shop
Twotrees TS3-10W Enclosed Diode Laser Engraver (Standdard Version - Blue) - TwoTrees Official Shop
Twotrees StoreTwotrees TS3-10W Enclosed Diode Laser Engraver (Standdard Version - Blue)
£322.00
£899.00 £322.00

Product Video

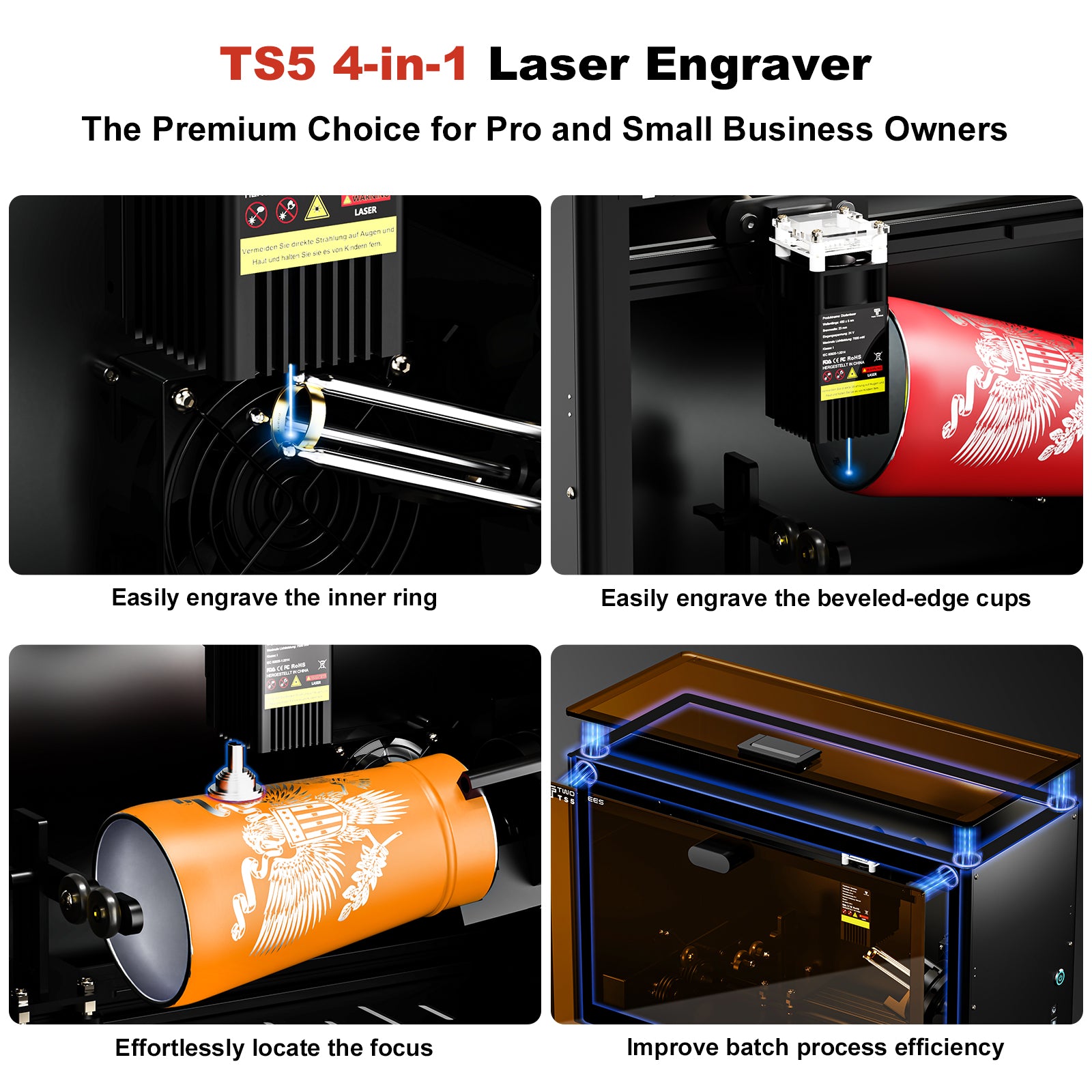

Features That Makes TS5 Stand Out

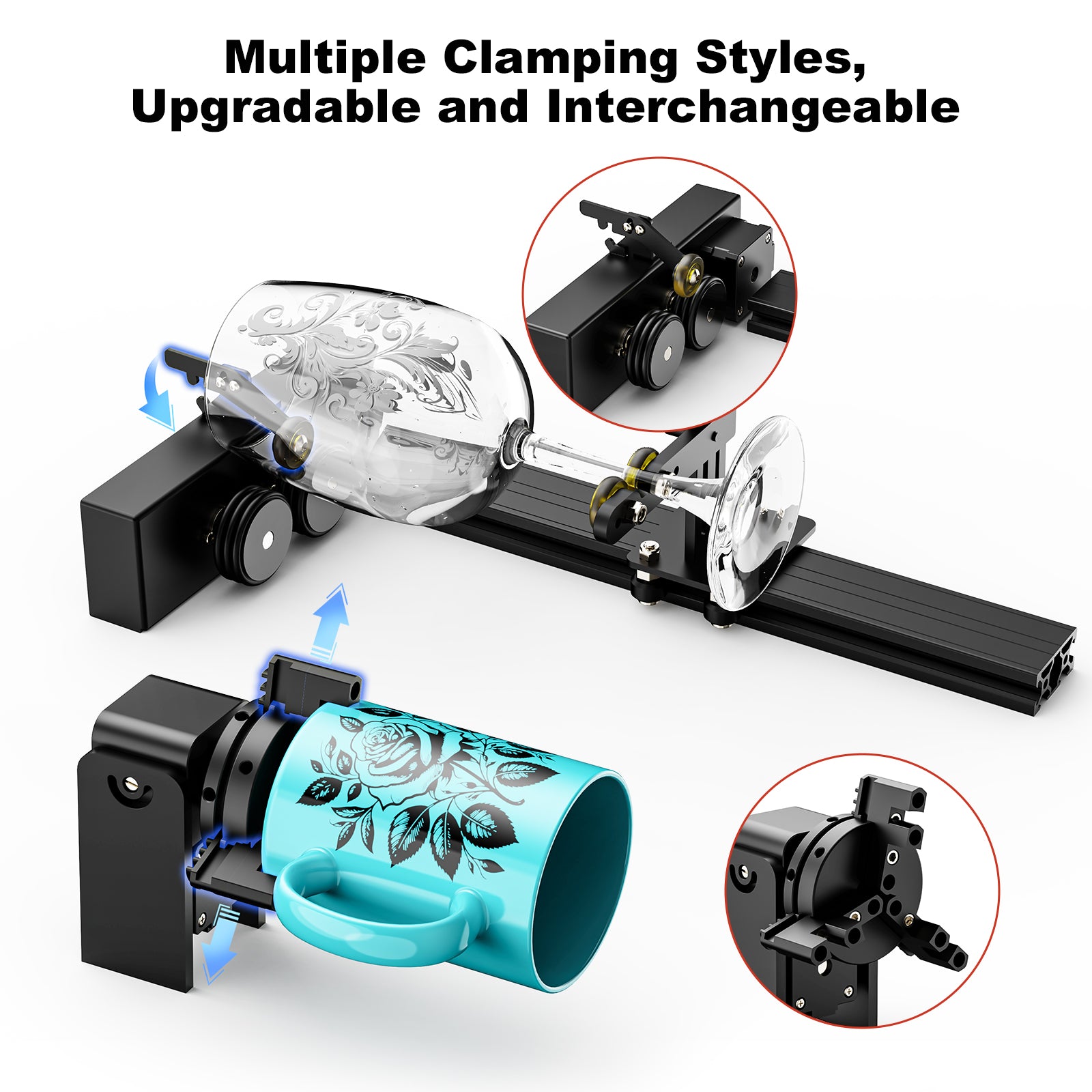

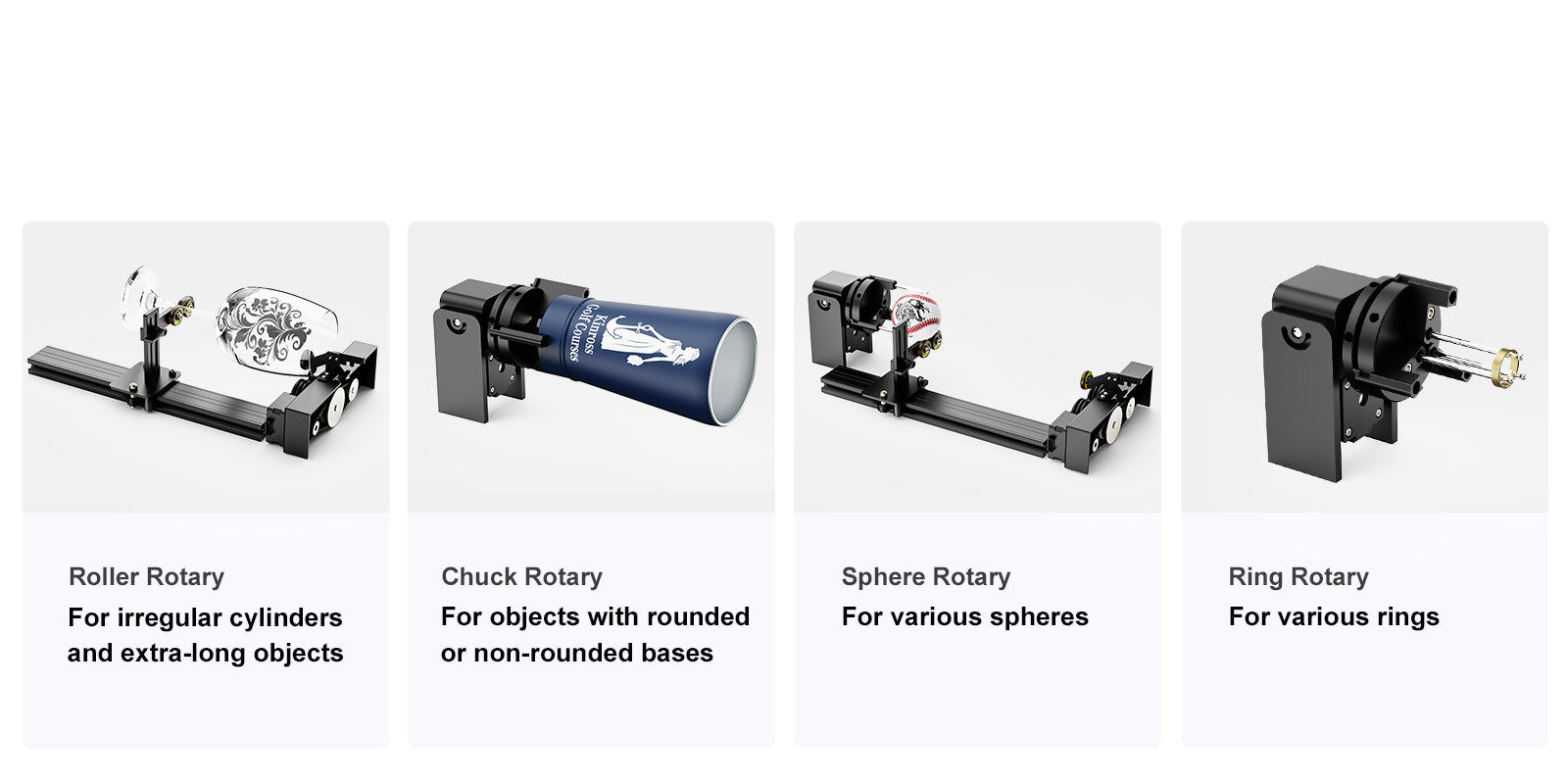

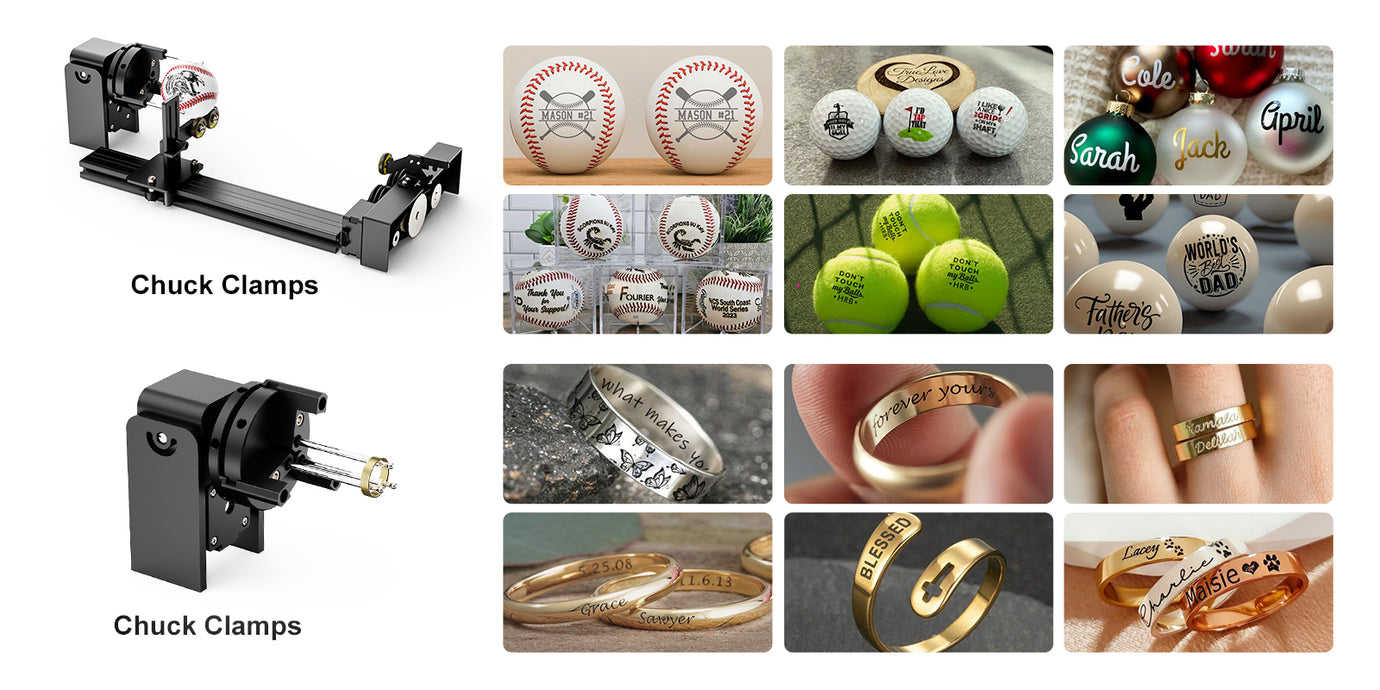

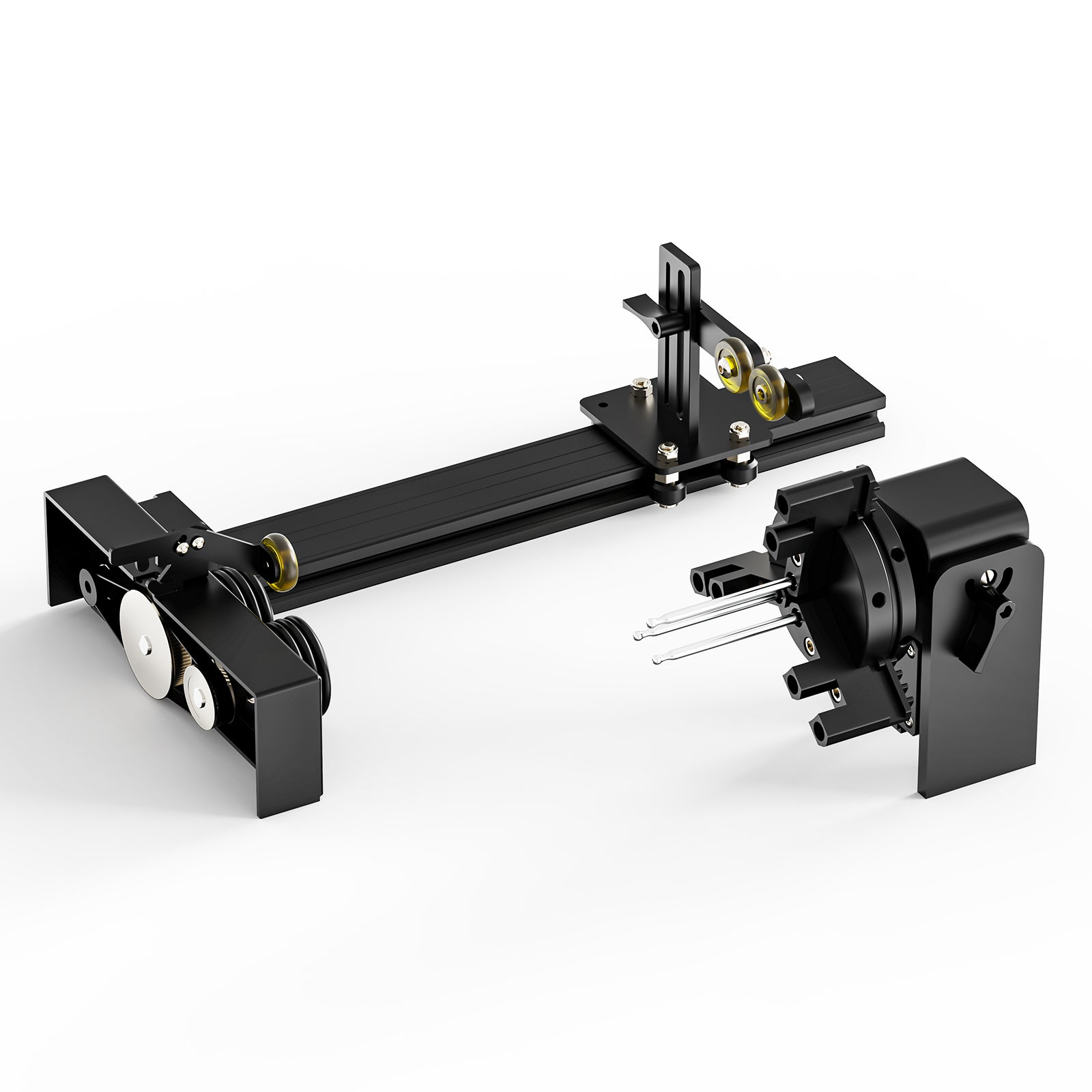

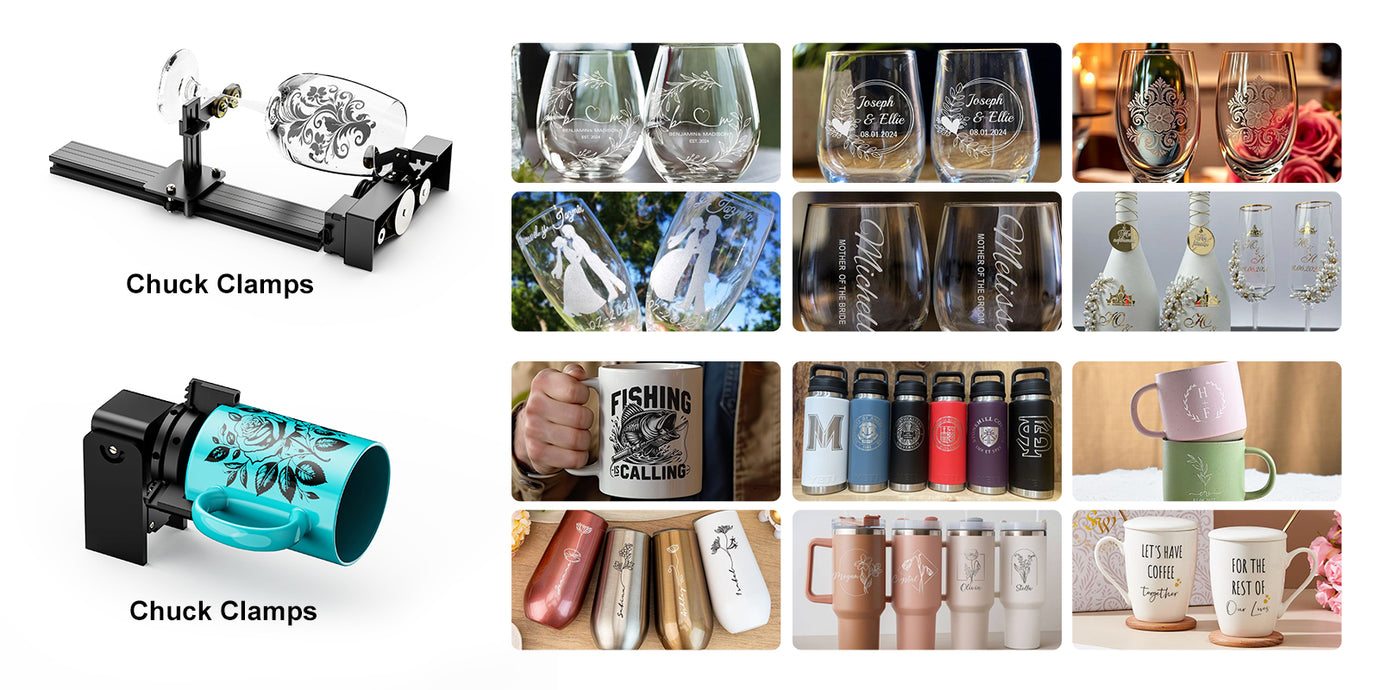

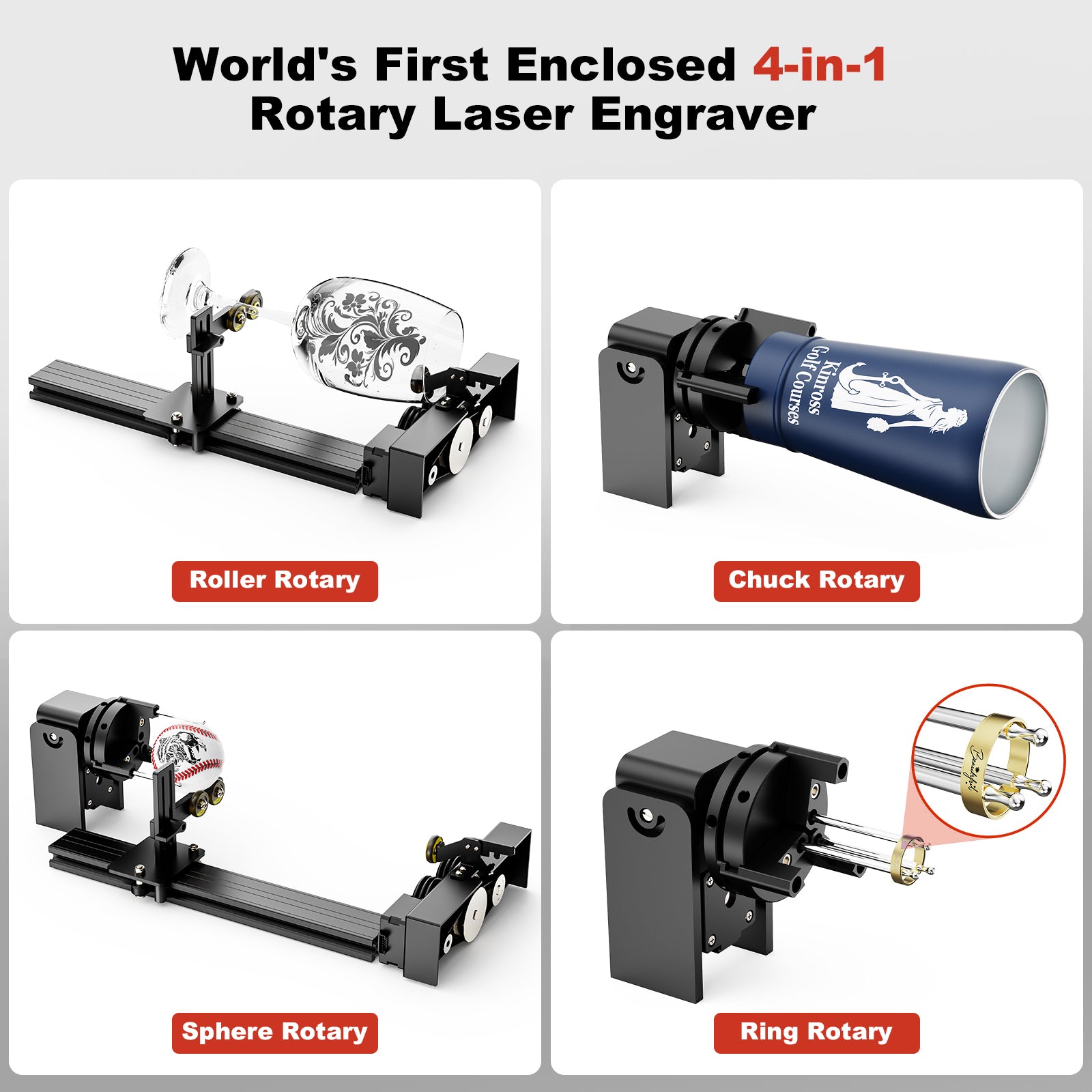

Multiple Clamping Styles, Upgradable and Interchangeable

Game-Changing、Ultimate Creativity

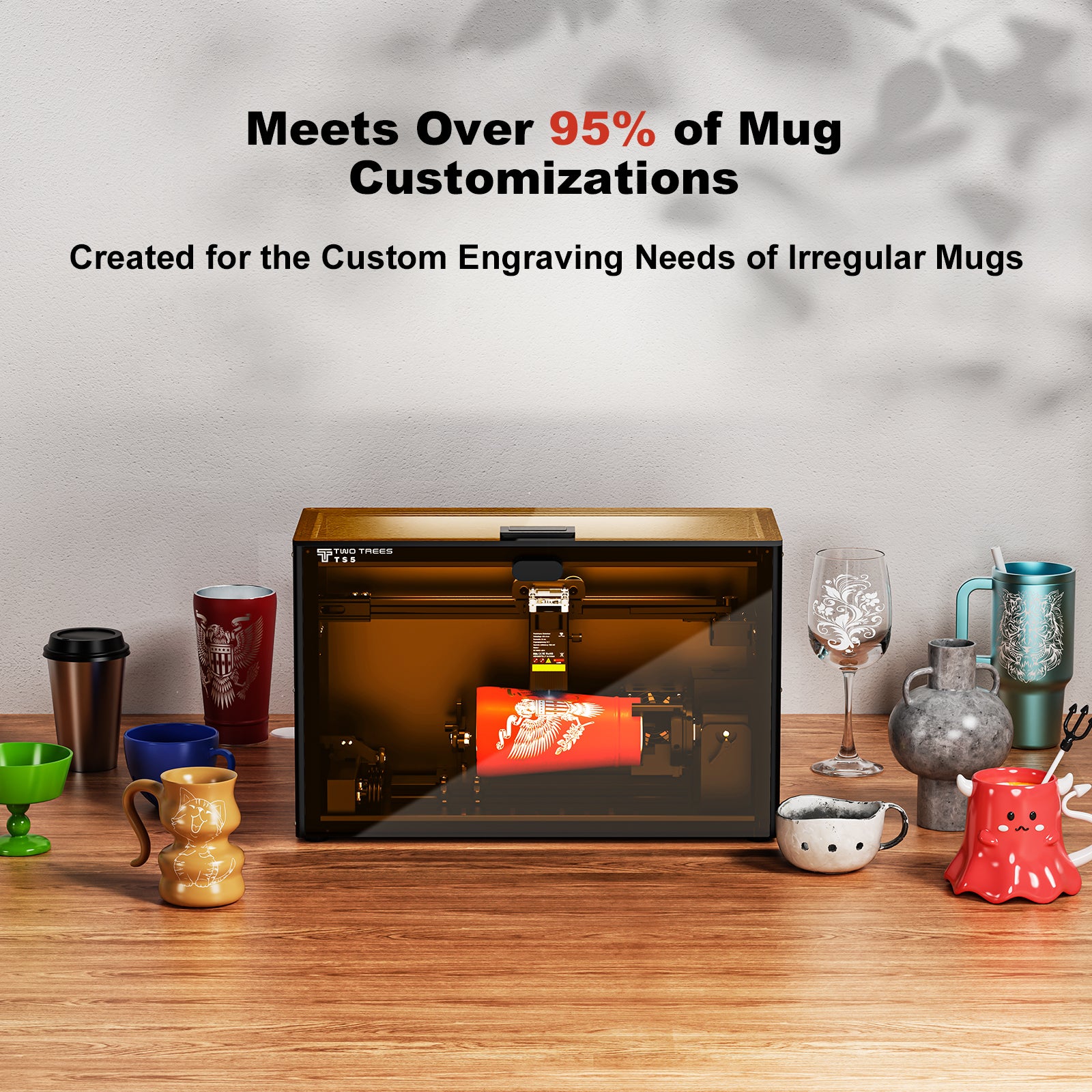

Soive 99% of the Mugs Engraving Problems on the Market

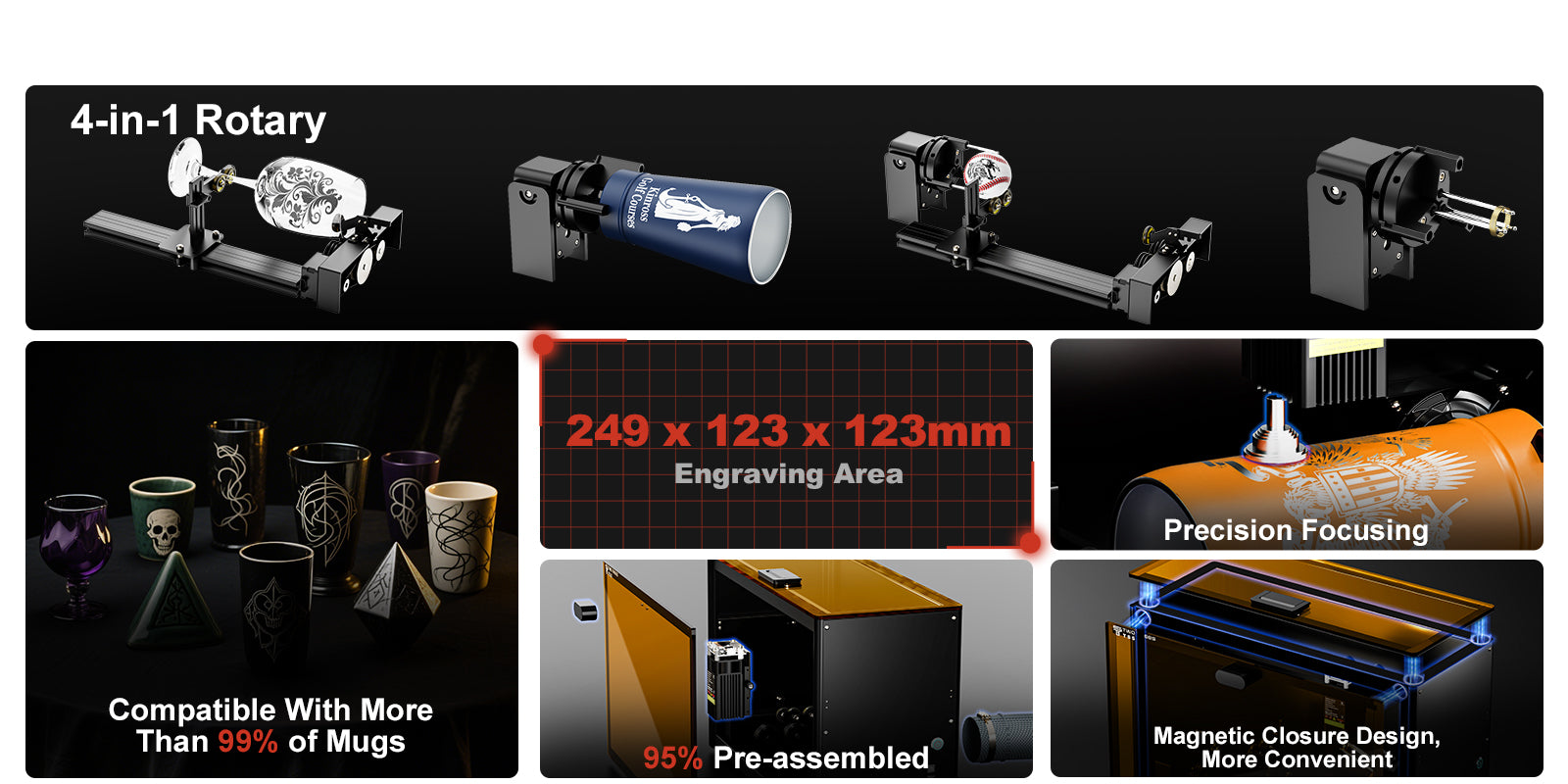

Discover What's New

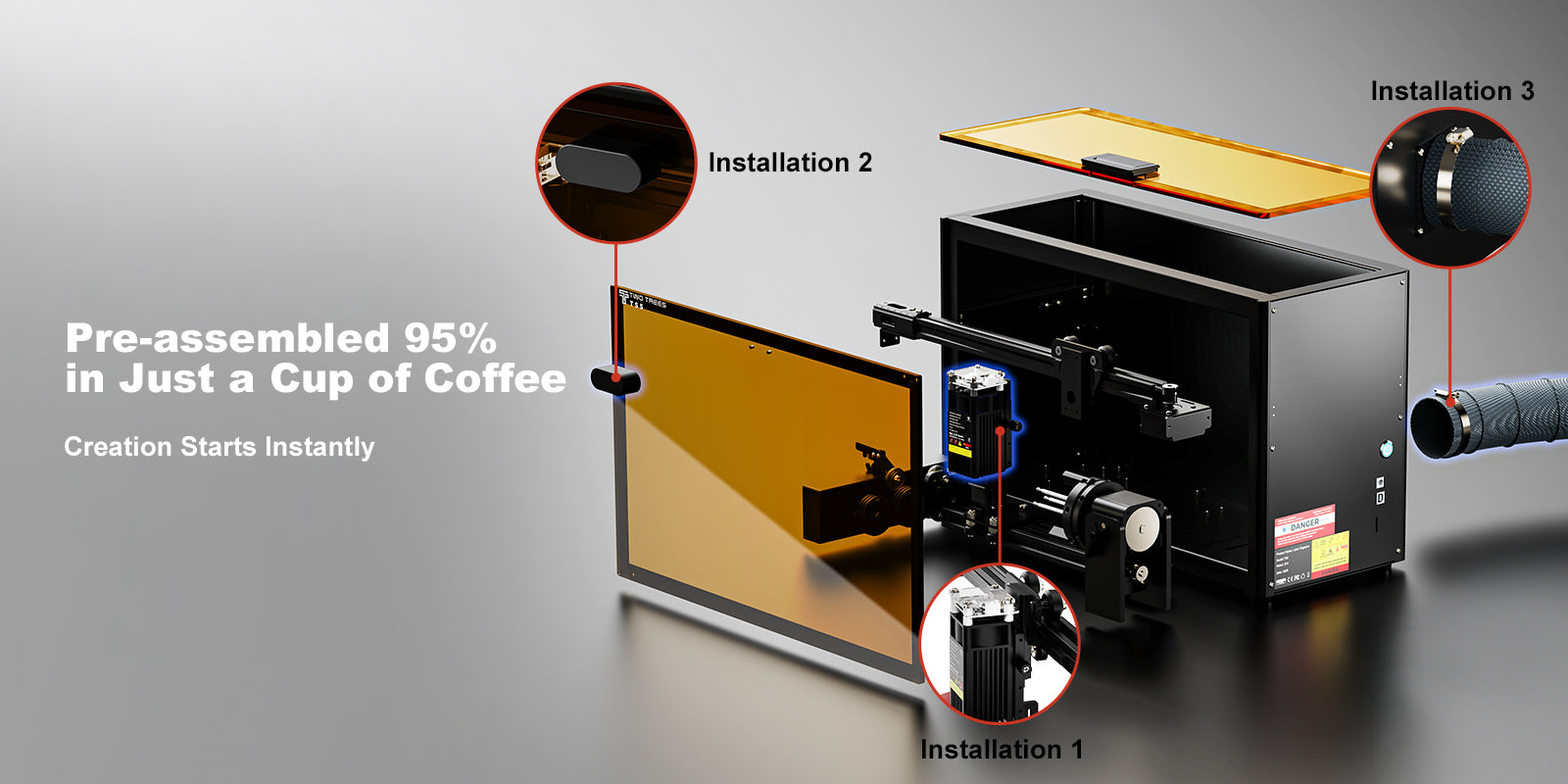

Pre-assembled 95%

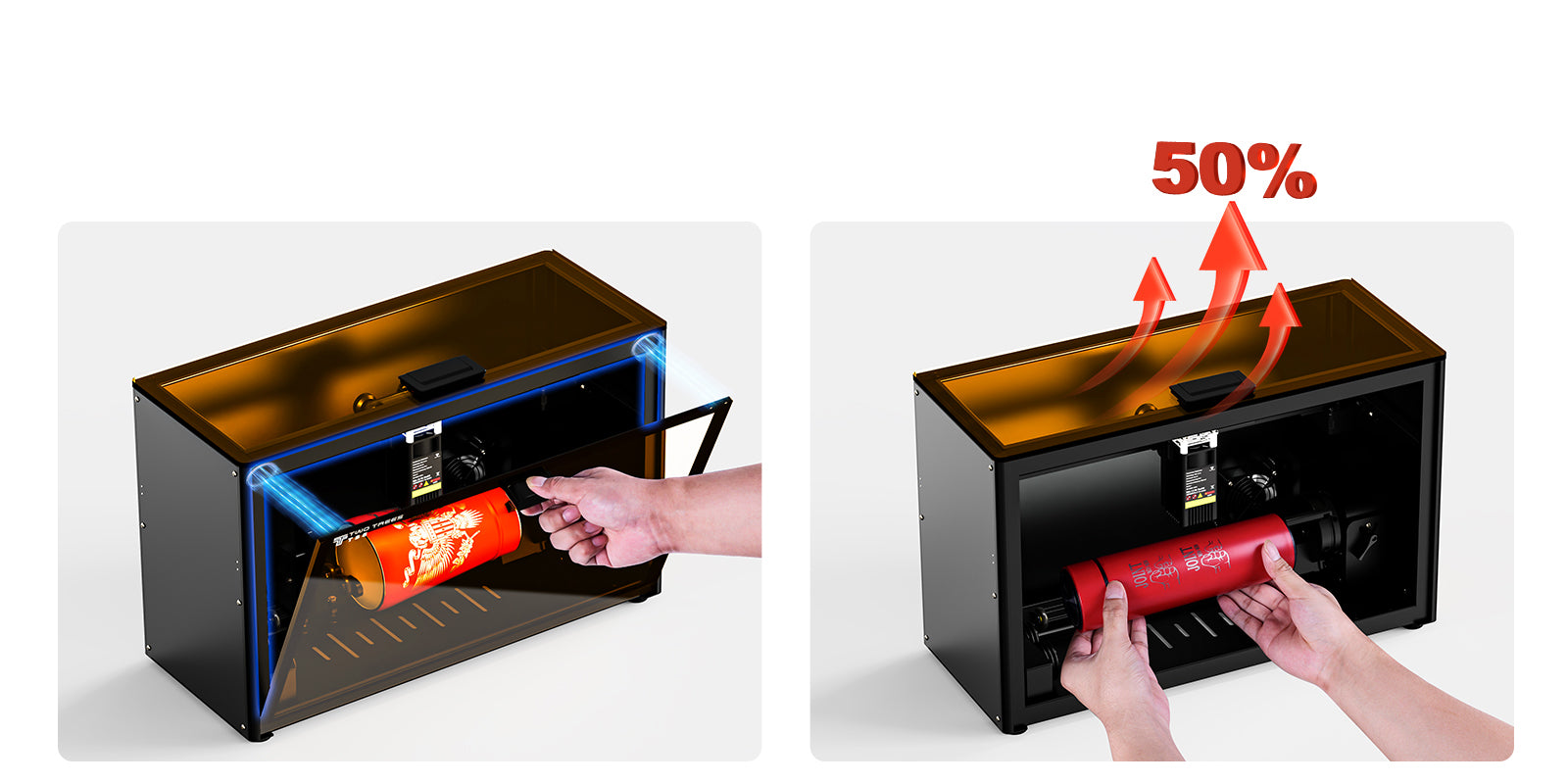

Magnetic Closure Design

Safety and Eye Protection

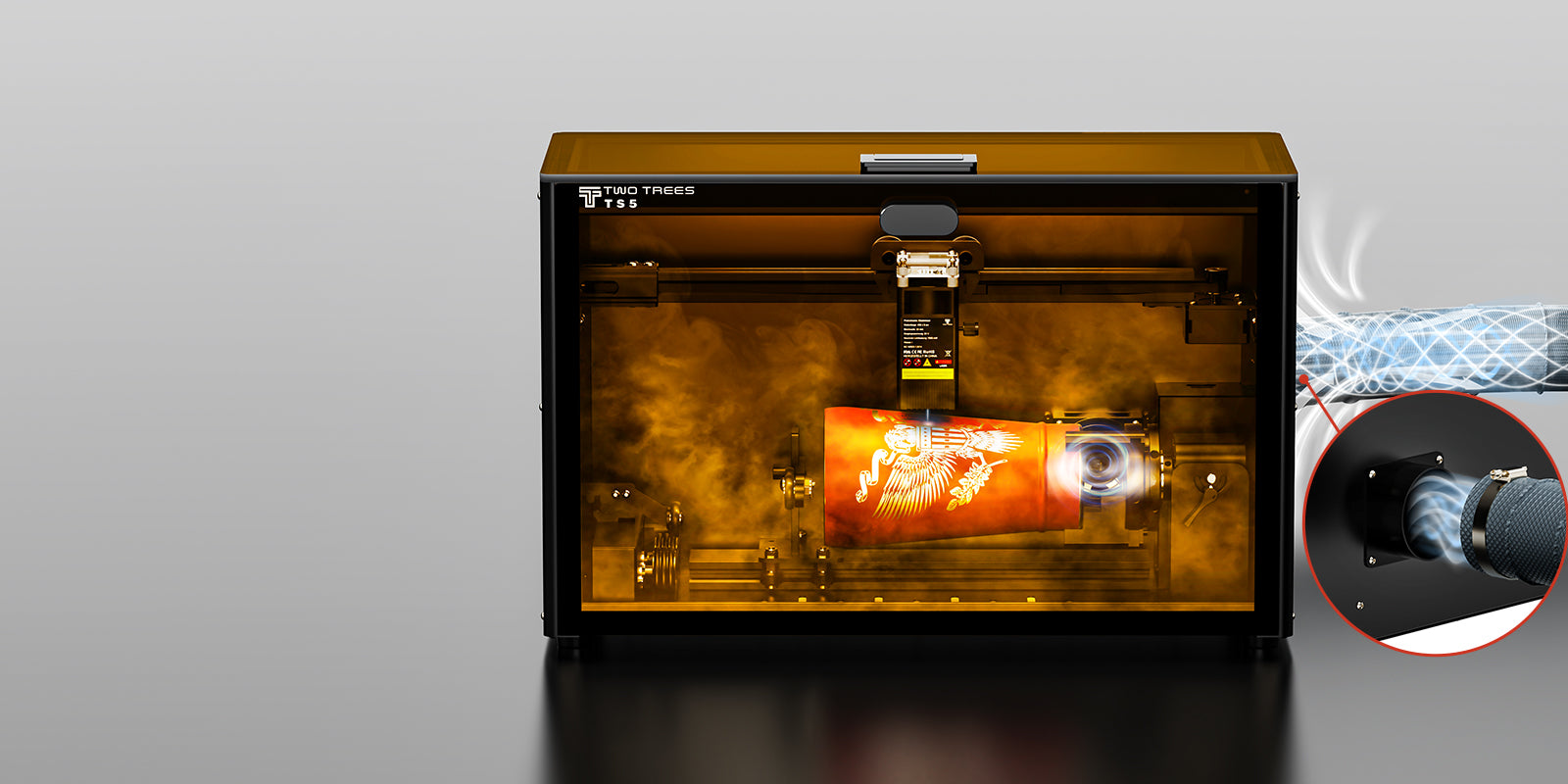

Dust and Smoke Exhaust

Compatible With Mainstream Software

Special Filtering Material to Effectively Block Harmful Blue Li

Unleash Software Flexibility

Satisfy all Your Creativity From Start to Advanced,Compatible with Lightburn and so on

Product

Specifications

Main material

Aluminum + High Carbon Steel

Net weight

9.13 kg

Gross weight

10.55 kg

Chuck external clamping range

Ø26 – Ø140 mm

Chuck internal clamping range

Ø15 – Ø110 mm

Chuck tilt adjustment angle

-8° to +8°

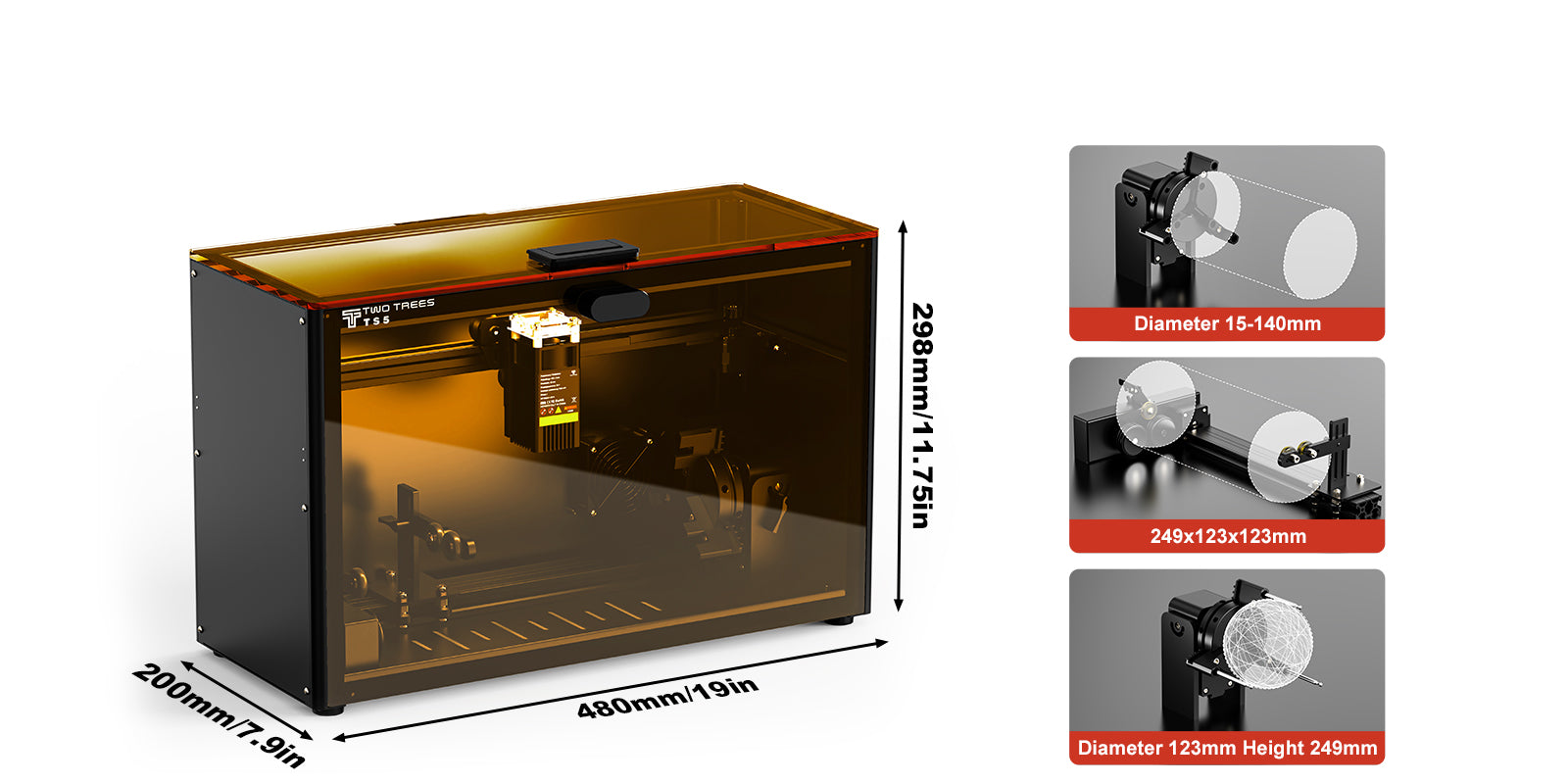

Product dimensions

480 × 200 × 298 mm

Working area

249 × 123 × 123 mm

Package dimensions

553 × 280 × 387 mm

Input voltage

100-240V~50/60Hz

Output voltage

24V

Laser power

7W

Overall power

60W

Wavelength

450 ± 5 nm

Spot size

0.035 × 0.1 mm

Supported

TF Storage Card,USB Port,Wi-Fi
Return to Origin After Engraving,Motion Control,Laser Power Adjustment,External Exhaust Interface

Not supported

Bluetooth, Limit Homing,Power-Off Resume

Optional

Gas Assist, Screen Control

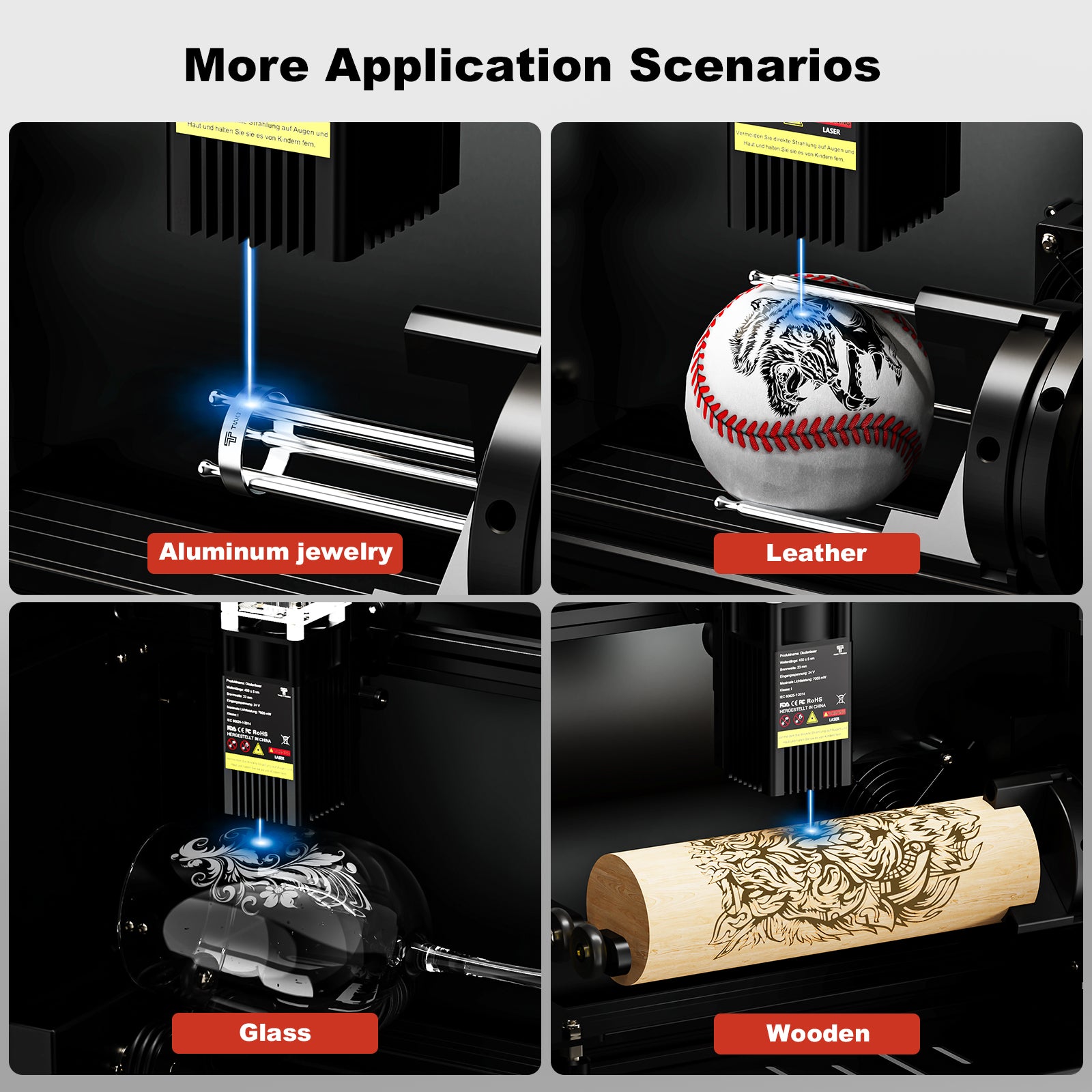

Engraving materials

Mugs,Wine Glasses,Stainless Steel,Rings

Motion structure

XY dual-axis

X/y axis positioning accuracy

0.1mm

Maximum speed

10,000 mm/min

Engraving software

LaserGRBL(Windows), LightBurn(Common)

Supported operating systems

macOS / Windows / Linux

Software languages

Chinese, English, Spanish, German, French, Russian, Portuguese, Italian, Japanese, Korean, etc.

Supported software formats

lbrn,BMP,JPG,PNG,GCODE

Engraving file format

.nc

Safety certifications

CE\FCC\ROHS CE-EMC, CE-LVD, CE-RED, CE-MD, EN60825-1,EN60825-4, ROHS, IEC60825, FCC-Sdoc, FCC-ID, FDA

Operating temperature

5℃ ~ 40℃

Operating humidity

20% ~ 60% RH
